Visual Mode

The visual mode is a more user-friendly interface alternative to radare2's command-line prompt. It uses HJKL or arrow keys to move around data and code, has a cursor mode for selecting bytes, and offers numerous key bindings to simplify debugger use. To enter visual mode, use V command. To exit from it back to command line, press q.

print modes aka Panels

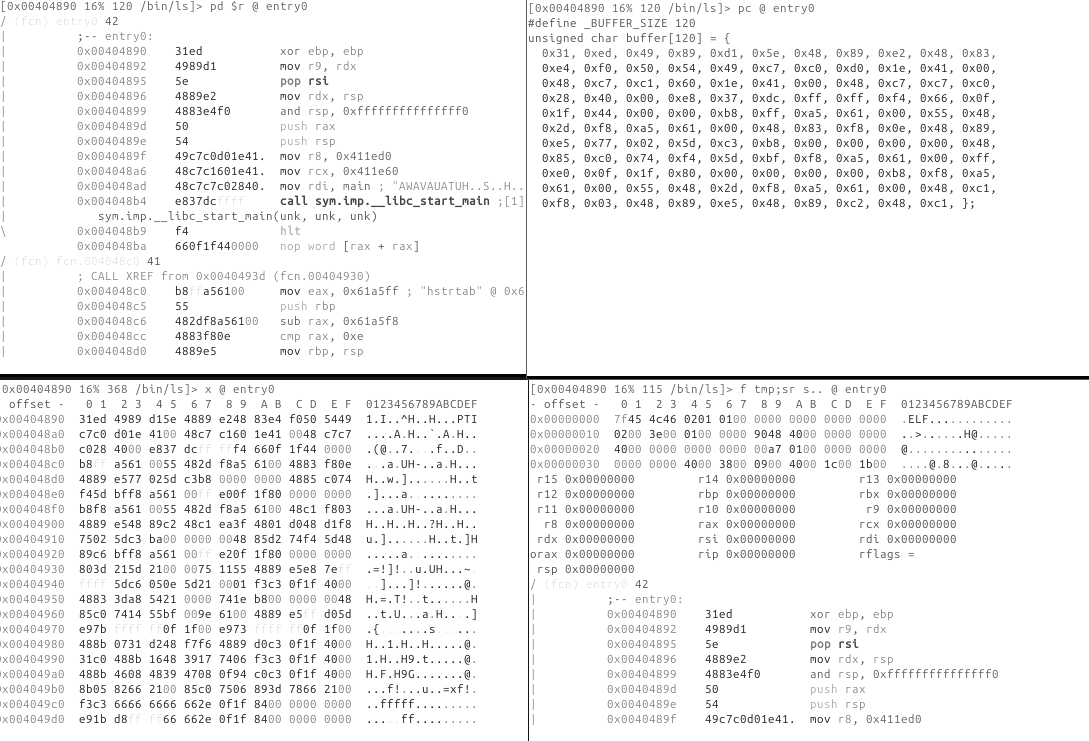

The Visual mode uses "print modes" which are basically different panel that you can rotate. By default those are:

↻ Hexdump panel -> Disassembly panel → Debugger panel → Hexadecimal words dump panel → Hex-less hexdump panel → Op analysis color map panel → Annotated hexdump panel ↺.

Notice that the top of the panel contains the command which is used, for example for the disassembly panel:

[0x00404890 16% 120 /bin/ls]> pd $r @ entry0

Getting Help

To see help on all key bindings defined for visual mode, press ?:

Visual mode help:
 ?        show this help
 ??       show the user-friendly hud
 %        in cursor mode finds matching pair, or toggle autoblocksz
 @        redraw screen every 1s (multi-user view)
 ^        seek to the begining of the function
 !        enter into the visual panels mode
 _        enter the flag/comment/functions/.. hud (same as VF_)
 =        set cmd.vprompt (top row)
 |        set cmd.cprompt (right column)
 .        seek to program counter
 \        toggle visual split mode
 "        toggle the column mode (uses pC..)
 /        in cursor mode search in current block
 :cmd     run radare command
 ;[-]cmt  add/remove comment
 0        seek to beginning of current function
 [1-9]    follow jmp/call identified by shortcut (like ;[1])
 ,file    add a link to the text file
 /*+-[]   change block size, [] = resize hex.cols
 </>      seek aligned to block size (seek cursor in cursor mode)
 a/A      (a)ssemble code, visual (A)ssembler
 b        browse symbols, flags, configurations, classes, ...
 B        toggle breakpoint
 c/C      toggle (c)ursor and (C)olors
 d[f?]    define function, data, code, ..
 D        enter visual diff mode (set diff.from/to
 e        edit eval configuration variables
 f/F      set/unset or browse flags. f- to unset, F to browse, ..
 gG       go seek to begin and end of file (0-$s)
 hjkl     move around (or HJKL) (left-down-up-right)
 i        insert hex or string (in hexdump) use tab to toggle
 mK/'K    mark/go to Key (any key)
 M        walk the mounted filesystems
 n/N      seek next/prev function/flag/hit (scr.nkey)
 o        go/seek to given offset
 O        toggle asm.pseudo and asm.esil
 p/P      rotate print modes (hex, disasm, debug, words, buf)
 q        back to radare shell
 r        refresh screen / in cursor mode browse comments
 R        randomize color palette (ecr)
 sS       step / step over
 t        browse types
 T        enter textlog chat console (TT)
 uU       undo/redo seek
 v        visual function/vars code analysis menu
 V        (V)iew graph using cmd.graph (agv?)
 wW       seek cursor to next/prev word
 xX       show xrefs/refs of current function from/to data/code
 yY       copy and paste selection
 z        fold/unfold comments in disassembly
 Z        toggle zoom mode
 Enter    follow address of jump/call
Function Keys: (See 'e key.'), defaults to:
  F2      toggle breakpoint
  F4      run to cursor
  F7      single step
  F8      step over
  F9      continue
